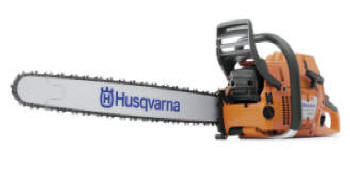

Husqvarna 390XP/XPG
|
|
|
Features
|
|
Engine Specification |
|
| Cylinder displacement |
87.9 cm³ / 5.4 cu.inch |
| Power output |
4.8 kW / 6.5 hp(I) |
| Idling speed |
2700 rpm |
| Maximum power speed
|
9600 rpm |
| Cylinder bore |
55 mm / 2.17 inch |
| Cylinder stroke |
37 mm / 1.5 inch |
| Ignition system |
SEM AM50 |
| Ignition module air gap
|
0.3 mm / 0 " |
| Spark plug |
Champion RCJ 7Y |
| Electrode gap |
0.5 mm / 0.02 " |
| Carburettor model name
|
HS296A |
| |
|
| Fuel tank volume
|
0.9 lit / 1.9 US pint |
| Oil tank volume |
0.5 lit / 1.1 US pint |
| Oil pump type
|
Adjustable flow |
| Oil pump capacity
|
6-24 ml/min |
| |
|
| Cutting equipment
|
|
| Chain pitch
|
3/8" |
| Recommended bar length, min-max
|
45-70 cm / 18"-28" |
| Chain speed at max power |
21.4 m/s / 0 fts |
| |
|
| Emission, vibration & noise data
|
|
| Sound level |
105.5 dB(A) |
| Sound power level, LWA
|
118 dB(A) |
| Vibrations front handle
|
5.8 m/s² |
| Vibrations rear handle
|
7 m/s² |
| |
|
| Overall dimensions |
|
| Weight |
7.1 kg / 15.7 lbs |
|
|
|
