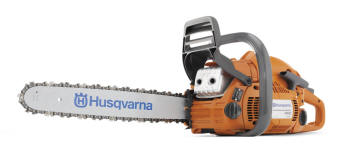

Husqvarna 450 eseries
|
|
|
Features
|
|
Engine Specification |
|
| Cylinder displacement |
50.2 cm³ / 3.06 cu.inch |
| Power output |
2.4 kW / 3.2 hp(I) |
| Idling speed |
2700 rpm |
| Maximum power speed
|
9600 rpm |
| Cylinder bore |
44 mm / 1.73 inch |
| Cylinder stroke |
33 mm / 1.3 inch |
| Ignition system |
Walbro MB |
| Ignition module air gap
|
0.3 mm / 0.01 " |
| Spark plug |
NGK BPMR7A |
| Electrode gap |
0.5 mm / 0.02 " |
| Carburettor model name
|
C1M/X5131 |
| |
|
| Fuel tank volume
|
0.45 lit / 0.95 US pint |
| Oil tank volume |
0.26 lit / 0.55 US pint |
| Oil pump type
|
Adjustable flow |
| Oil pump capacity
|
9-9 ml/min |
| |
|
| Cutting equipment
|
|
| Chain pitch
|
.325" |
| Recommended bar length, min-max
|
33-50 cm / 13"-20" |
| Chain speed at max power |
17.34 m/s / 56.89 fts |
| |
|
| Emission, vibration & noise data
|
|
| Sound level |
103.5 dB(A) |
| Sound power level, LWA
|
113 dB(A) |
| Vibrations front handle
|
2.3 m/s² |
| Vibrations rear handle
|
2.7 m/s² |
| |
|
| Overall dimensions |
|
| Weight |
5.1 kg / 11.33 lbs |
|
|
|
