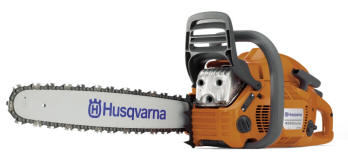

Husqvarna 455 Rancher
|
|
|
Features
|
|
Engine Specification |
|
| Cylinder displacement |
55.5 cm³ / 3.4 cu.inch |
| Power output |
2.6 kW / 3.5 hp(I) |
| Idling speed |
2700 rpm |
| Maximum power speed
|
9000 rpm |
| Cylinder bore |
47 mm / 1.8 inch |
| Cylinder stroke |
32 mm / 1.3 inch |
| Ignition system |
SEM AM50 |
| Ignition module air gap
|
0.3 mm / 0.01 " |
| Spark plug |
Champion RCJ 7Y, NGK BP |
| Electrode gap |
0.5 mm / 0.02 " |
| Carburettor model name
|
Walbro WTA |
| |
|
| Fuel tank volume
|
0.44 lit / 0.9 US pint |
| Oil tank volume |
0.32 lit / 0.7 US pint |
| Oil pump type
|
Adjustable flow |
| Oil pump capacity
|
6-17 ml/min |
| |
|
| Cutting equipment
|
|
| Chain pitch
|
.325" / 3/8" |
| Recommended bar length, min-max
|
33-50 cm / 13"-20" |
| Chain speed at max power |
20 m/s / 65.62 fts |
| |
|
| Emission, vibration & noise data
|
|
| Sound level |
104 dB(A) |
| Sound power level, LWA
|
113 dB(A) |
| Vibrations front handle
|
3.4 m/s² |
| Vibrations rear handle
|
4.5 m/s² |
| |
|
| Overall dimensions |
|
| Weight |
5.8 kg / 13.2 lbs |
|
|
|
